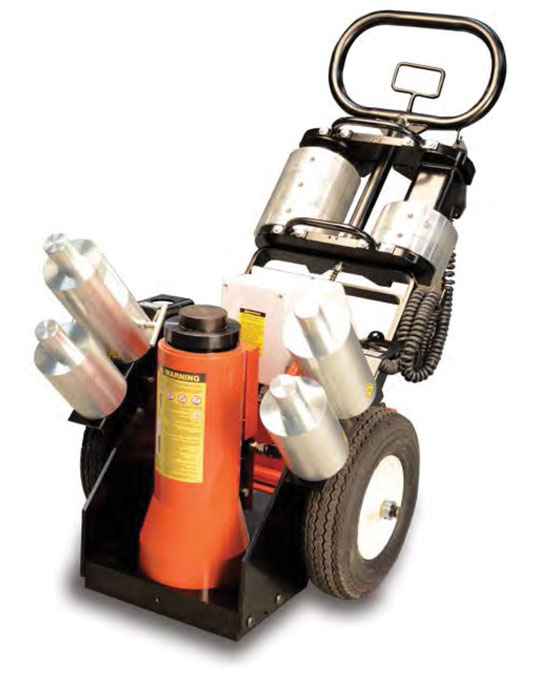

Portable High Tonnage Jack

October 31, 2014 3:53 am Published by Leave your thoughts

Modular design – pump and cart separate from cylinder and base.

Three tonnage capacity options – 55, 100, and 150 tons.

Three collapsed height options – 26″, 33″, and 45″.

Two standard power options – air (PA55) and electric (PE55).

Two control options – remote motor control and remote valve/motor control.

Accessory options – 6 5/8″ extension, load-holding rings.

Select the collapsed height to fit your most frequent application – add jacking modules to suit your needs.

Remote operation for maximum operator safety and control – choose “motor only” or “motor and valve” control in the hand.

Easy to maneuver – large tires and small “footprint” make it easy to scoot into the tightest quarters, then locate the exact lifting position.

Adjustable, heavy-duty handle – makes this jack easy to move, position under vehicles. Can also be used to transport jack on site with a forklift.

Load-holding rings (optional) – provide full rated mechanical load-holding capability.

Shielded and sheltered hydraulic lines – for safer, longer, trouble-free service.

Cylinder extension (optional) – adds more versatility by extending your jack’s reach.

Low-temperature oil (optional) – provides smooth, reliable operation in the coldest climate conditions.

Modular design – allows you to change lifting modules to suit your tonnage or height requirements.

Use the pump module as a portable power station for your other double-acting cylinders (10,000 psi).

Exclusive load-control system – provides positive, chatter-free control when lowering the load.

Pump & Cart Modules
Pump and cart modules contain hydraulic pump, cart, remote control and all hoses and fittings required to connect to a jack module. Contact factory on folding handle cart option.
