Technical Specifications

777A
  • Working Load Limit 800kg
  • Maximum Lift 500mm
  • Lifting arms lowered height 115mm
  • Lifting arms raised height 615mm
  • Width of roller arms closed 440mm
  • Width of roller arms open 680mm
  • Overall Width 980mm
  • Overall Depth 1060mm
  • Overall Height 1070mm
  • Net weight 101kg

Features

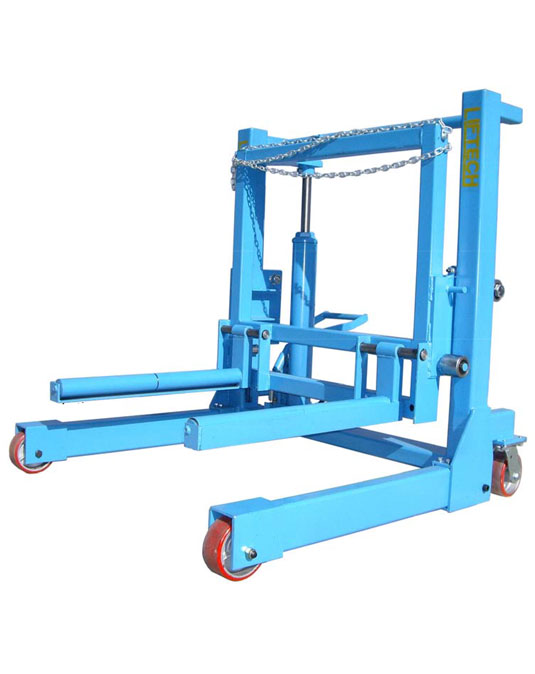

The LIFTECH Wheel Dolly makes the removal and refitting of dual or super single wheels effortless.
  • Heavy Duty wide frame & lifting carriage
  • Offset hydraulic unit allows working access to wheels during removal & refit
  • Hydraulic unit has foot pump & foot release for hands free operation
  • Extra lifting height enables wheels to be placed on balancers or other machines
  • Polyamide coated fixed front wheels & caster rear wheels for better maneuverability
  • 3 position adjustment on lifting arms
  • Angle iron reinforced lifting arms
  • 4 rollers per side for smoother wheel rotations
  • Safety chain for securing load
  • 2 Stud & Nut trays
